Welding Servo Plastic Heat Staking Machine Manufacturer

Place of Origin China
Brand Name BOYI
Minimum Order Quantity 1 set
Price USD2000-20000
Packaging Details Plywood box
Delivery Time 45 days after receiving deposit
Payment Terms T/T, L/C
Supply Ability 80 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material Aluminum Alloy Color White
Dimension 500*400*400mm Power Consumption 2KW
Power Supply AC220V/50Hz Product Name Heat Staking Welding Machine
Staking Temperature 200-400℃ Weight 25Kg
Welding Accuracy ±0.1mm Welding Area Φ2-Φ10mm
Welding Depth 0-3mm Welding Height 0-10mm
Welding Method Heat Staking Welding Pressure 0-3Kg
Welding Speed 0-200mm/s Welding Time 0.1-9.9s
High Light

heat staking machine manufacturer


welding heat staking machine


plastic heat staking machine

Leave a Message
Product Description

Servo heat staking welding machine used in
Working Principle
The inherent plastic riveting column, ribbed wing and vertical rib are reserved on the molded part, and the riveting column (hot pile) protruding from the metal surface is pressed and cooled by the special metal forming riveting head after controlled thermal melting and softening, and then re-formed and clamped. The use of a specific shape of the riveting head can achieve the plastic riveting column counterflush riveting (flush riveting), hemisphere riveting, arc flanging riveting, rib-rib riveting, mechanical forging, folding Mosaic cladding, etc., to achieve the mechanical riveting and assembly of different materials of the connection, the connection part is not easy to embrittle, beautiful, firm, good sealing, so as to achieve the optimal design of the structure. Make full use of the best combination of mechanical properties of various materials, greatly improve the performance of the overall component, the overall structure impact resistance, so as to achieve the most perfect fit, especially suitable for long-term mechanical vibration, environmental temperature and humidity change range, the natural environment is extremely harsh occasions.
Welding Servo Plastic Heat Staking Machine Manufacturer 0

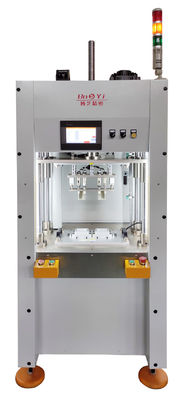

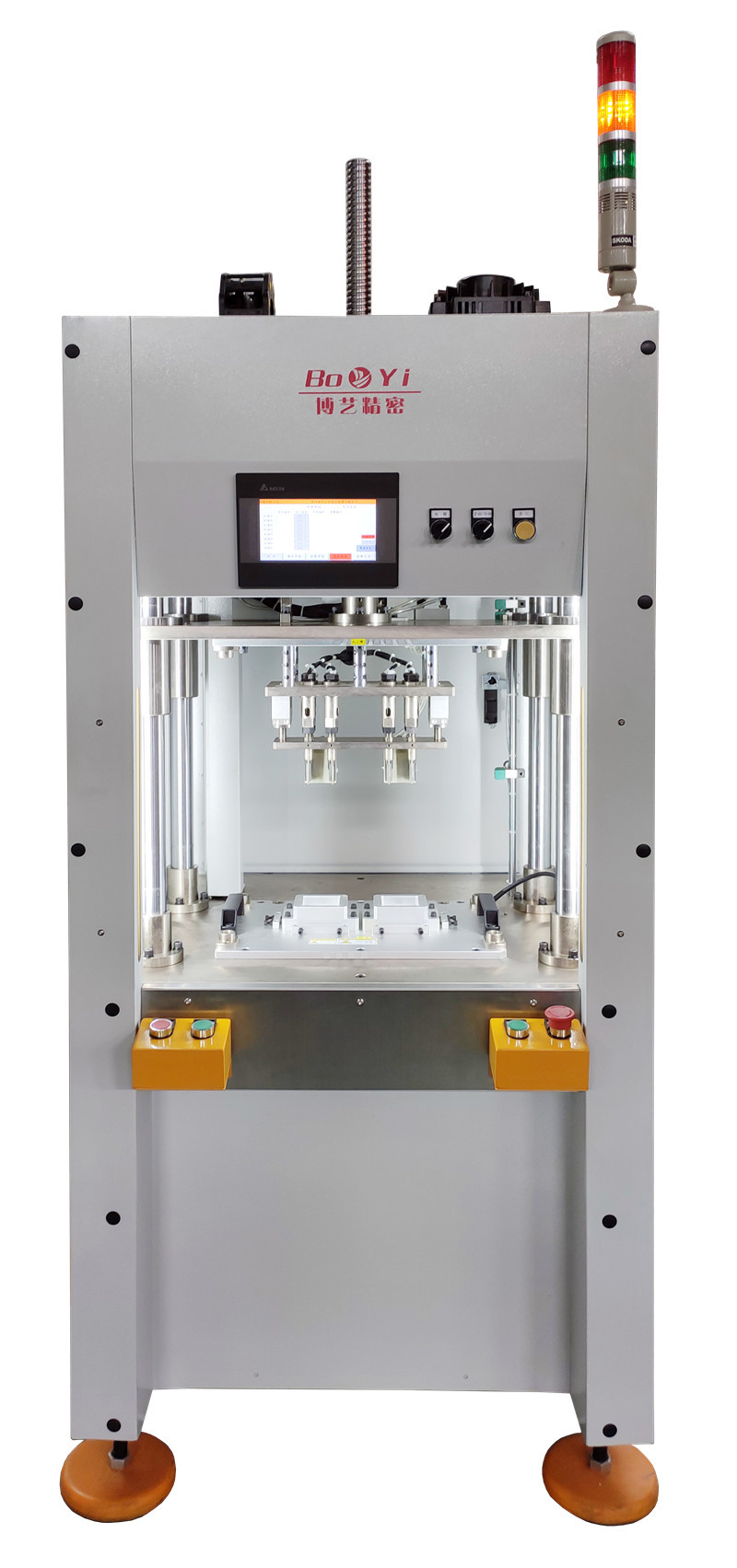

Servo Hot Riveting Equipment Model:BY-4230RM(SF)
ItemDetailed Information

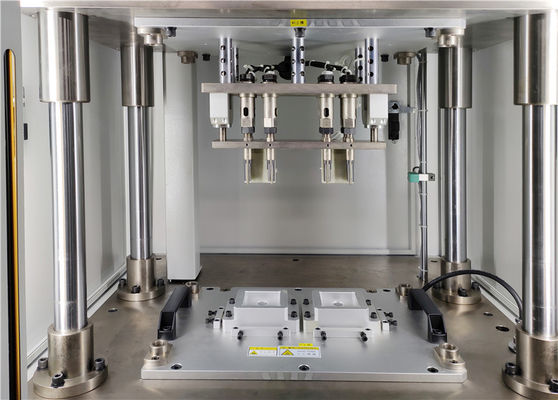

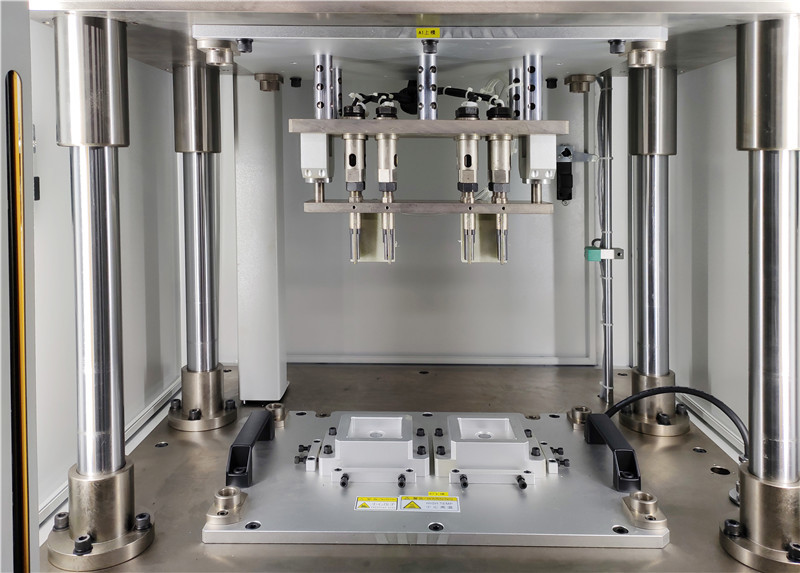

Equipment Introduction◆The equipment is used for the hot melt riveting of buzzer shell, the device adopts the mode of one die and two holes for welding, with high efficiency. The total number of riveting points is 8, and the temperature is controlled independently by a single point.
◆The modular design of the high-power servo screw mechanism improves the working efficiency by 20-50% compared with the pneumatic equipment, with higher control precision and 0.05mm of repeated positioning error.
◆ 10 sets of welding programs can be pre-stored, and the data interface can run in tandem with the production line.
◆ Japan MISUSI original heating device. Hot plate temperature control, with self-test, closed-loop control, multi-point independent temperature control, temperature control accuracy up to ±2 degrees.
◆ Equipped with man-machine interface and Chinese and English bilingual interface operation.
◆ Adopt Japan Yaskawa high power servo motor/MISUSI synchronous wheel, synchronous belt/RONGDA bearing.
◆The cooling system is air-cooled by blowing air.
◆Production cycle time 25S-40S.
Equipment FeaturesMan-Machine Engineering◆Safety: the machine is equipped with protective grating and scald warning safety baffle.
◆Permission management: device setting administrator and operator permissions.
◆The work table height is 900MM.
◆The quipment starting mode: The equipment is started by pushing two starting buttons together with two hands.
Equipment capability/Quality traceability◆The device has the protection function of misoperation(the machine will not work if the machine is not operated according to the standard operation procedures).
◆Production records:The equipment can meet customer requirements for recording and storage of product capacity.
◆Alarm failure and code recording:The equipment automatically displays the alarm fault code and records it automatically
◆Man-machine interface - visual information of man-machine interface includes current operation steps, alarm information and solutions.
◆IMS interactive function: support Ethernet communication. The equipment has the function of QR Code scanning and identification. The data of hot riveting temperature, displacement and time can be recorded and sent to the company's IMS system. (This function is customized according to customer requirements.)
Equipment Clamp/Quick die change◆The equipment can be independently equipped with a die changing car. (this item is customized according to customer requirements)
◆The Clamp of the equipment is fixed by simple, fast and reliable fixing method such as locating pin, without special tools.
◆The pneumatic part of the clamp and the sensor part of the device are designed with quick plug and pull.
◆Quick die change time is 10-15 minutes.
Electrical layout/Safety◆The equipment has tooling recognition sensor, which can judge whether the tooling is required for online production. If not, the equipment will alarm.
◆Locking function: in case of equipment failure or clamp installation error, the product is locked to the corresponding station (it needs to be unlocked by the designated personnel).
◆Equipment alarm: when the equipment fails, the man-machine interface displays alarm information, and the control system locks the machine.
◆Control system voltage DC24V.
◆I/O- each station has a 10% I/O allowance for future expansion.
Technical Parameters◆Equipment demension(L)550MM*(W)600MM*(H)1000MM.
◆Maximum allowable die size of equipment (L)350MM*(W)250MM*(H)250MM.
◆Electric power requiement: 3 phases 380V 50Hz(If there are special requirements, customer confirmation is required.).
◆The outlet pressure of the air compressor: 4Kg/cm2-6Kg/cm2(约0.4MPA-0.6MPA).
◆Adaptable to ambient temperature: -5℃~40℃
◆Adaptalbe to humidity : 20%~80%
◆The noise of the transmission part shall not exceed 70 db.
