Servo Plastic Hot Melting Welding Machine

Place of Origin China
Brand Name BOYI
Minimum Order Quantity 1 set
Price USD2000-10000
Packaging Details Plywood box
Delivery Time 45 days after receiving deposit
Payment Terms T/T, L/C
Supply Ability 60 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material Aluminum Alloy Color White
Air Pressure 0.6Mpa Frequency 50Hz
Name Hot Riveting Welding Machine Power 220V
Rated Current 4.5A Rated Power 1000W
Rated Voltage 220V Size 210*160*90mm
Weight 2.5Kg Welding Angle 90°
Welding Length 2-6mm Welding Speed 200-500mm/s
Welding Thickness 0.2-1.5mm Welding Width 1.5-3.2mm
High Light

plastic riveting machine


Servo hot melting welding machine


Hot Riveting Welding Machine

Leave a Message
Product Description

Servo hot melting welding machine used in kinds of plastic products welding


Working Principle:


Plastic hot melt machine is divided into ultrasonic plastic hot melt machine, ultrasonic plastic hot melt machine, large plastic hot melt machine, medium-sized plastic hot melt machine, small plastic hot melt machine and other plastic hot melt machine products. Plastic hot melt unit part: plastic hot melt machine is a special equipment for hot melt welding composed of plastic filter element and plastic end cover. The machine is equipped with a heating head at both ends of the filter element and a heating head with two end covers, and the electric power of each heating head is 500 watts, a total of 2000 watts. The fixed displacement of the end cover of the filter element and the heater are driven by the cylinder, so that the surface of the heated part of the filter element and the end cover is in contact with the heating surface of the heater, so that the surface is melted, and then the heated surface is quickly bonded and cured to form a whole. These moving parts are filter feed mechanism, end cap clamping manipulator, heater lifting mechanism, pressing device, etc. These mechanisms are designed and combined into the whole machine. The mechanism is driven by the cylinder. According to the new welding process requirements of plastic welding machine, the equipment adopts programmable controller (PLC), touch screen man-machine interface operation automatic control system, simple operation, accurate and reliable.

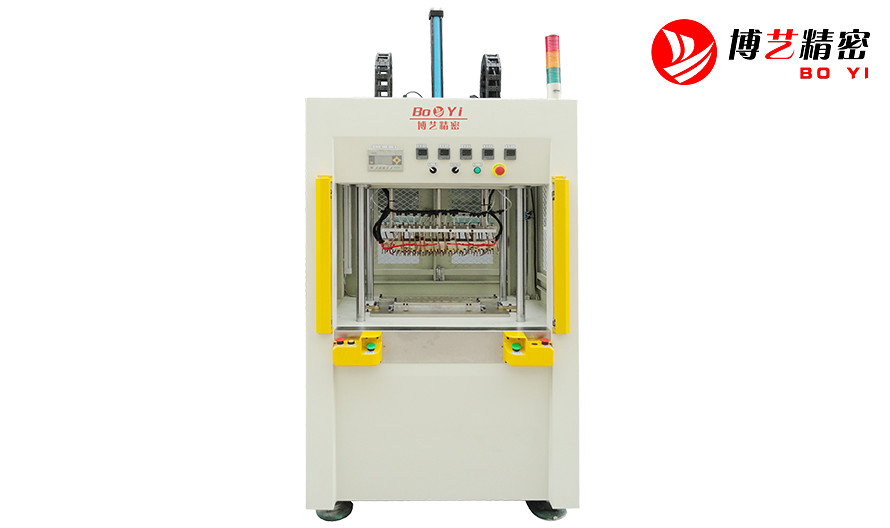

Servo Plastic Hot Melting Welding Machine 0



Table Type Pneumatic Hot Melt Equipment Model:BY-3025RR(QD)
Item Detailed Information
Equipment Introduction ◆This equipment has been applied to the hot melt riveting of shell products, the equipment can be welded from two different directions at the same time.The total number of riveting points is 4, and the temperature is controlled by region.
◆ 10 sets of welding programs can be pre-stored, and the data interface can run in tandem with the production line.
◆ Japan MISUSI original heating device. Hot plate temperature control, with self-test, closed-loop control, multi-point independent temperature control, temperature control accuracy up to ±2 degrees.
◆Equipped with man-machine interface and Chinese and English bilingual interface operation.
◆The cooling system is air-cooled by blowing air.
◆Production cycle time25S-40S.
Equipment Features Man-Machine Engineering ◆Safety: the machine is equipped with protective grating and scald warning safety baffle.
◆Permission management: device setting administrator and operator permissions.
◆The work table height is 750MM(Sitting position)
◆The quipment starting mode: The equipment is started by pushing two starting buttons together with two hands.
Equipment capability/Quality traceability ◆The device has the protection function of misoperation(the machine will not work if the machine is not operated according to the standard operation procedures).
◆Production records:The equipment can meet customer requirements for recording and storage of product capacity.
◆Alarm failure and code recording:The equipment automatically displays the alarm fault code and records it automatically
◆Man-machine interface - visual information of man-machine interface includes current operation steps, alarm information and solutions.
◆IMS interactive function: support Ethernet communication. The equipment has the function of QR Code scanning and identification. The data of hot plate temperature, displacement and time can be recorded and sent to the company's IMS system. (This function is customized according to customer requirements.)
Electrical layout/Safety ◆The equipment is equipped with tooling identification sensor. If the tooling model is wrong, the system will alarm and lock the equipment.
◆Locking function: in case of equipment failure or clamp installation error, the product is locked to the corresponding station (it needs to be unlocked by the designated personnel).
◆Equipment alarm: when the equipment fails, the man-machine interface displays alarm information, and the control system locks the machine.
◆Control system voltage DC24V.
◆I/O- each station has a 10% I/O allowance for future expansion.
Technical Parameters ◆Equipment demension(L)460MM*(W)400MM*(H)900MM.
◆Maximum allowable die size of equipment(L)300MM*(W250MM*(H)250MM.
◆Electric power requiement: 3 phases 380V 50Hz(If there are special requirements, customer confirmation is required.).
◆The outlet pressure of the air compressor: 4Kg/cm2-6Kg/cm2(约0.4MPA-0.6MPA).
◆Adaptable to ambient temperature: -5℃~40℃
◆Adaptalbe to humidity : 20%~80%
◆The noise of the transmission part shall not exceed 70 db.
