Car Door Panel Hot Riveting Welding Machine

Place of Origin China
Brand Name BOYI
Minimum Order Quantity 1 set
Price USD20000-50000
Packaging Details Plywood box
Delivery Time 45 days after receiving deposit
Payment Terms T/T, L/C
Supply Ability 60 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material Aluminum, Steel, Plastic Color White
Control System PLC Operation Automatic
Power 220V/380V Power Source Electric
Safety System Yes Size Compact
Weight Light Welding Area Small
Welding Precision High Welding Speed High
Welding Strength High Welding Type Spot Welding
High Light

Hot Riveting Welding Machine


car door panel welding machine


hot riveting machine

Leave a Message
Product Description

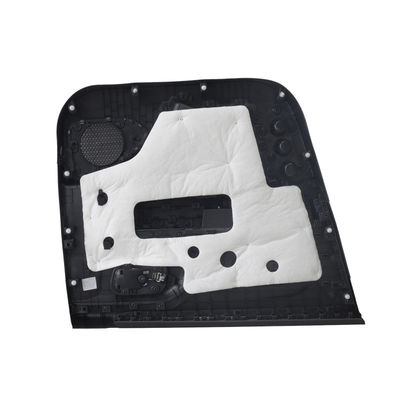

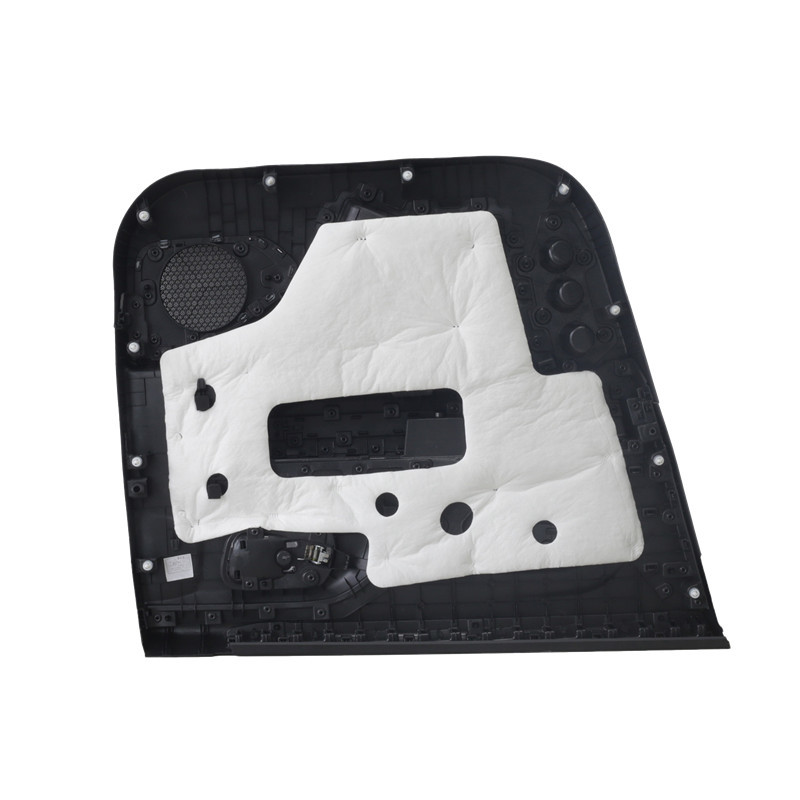

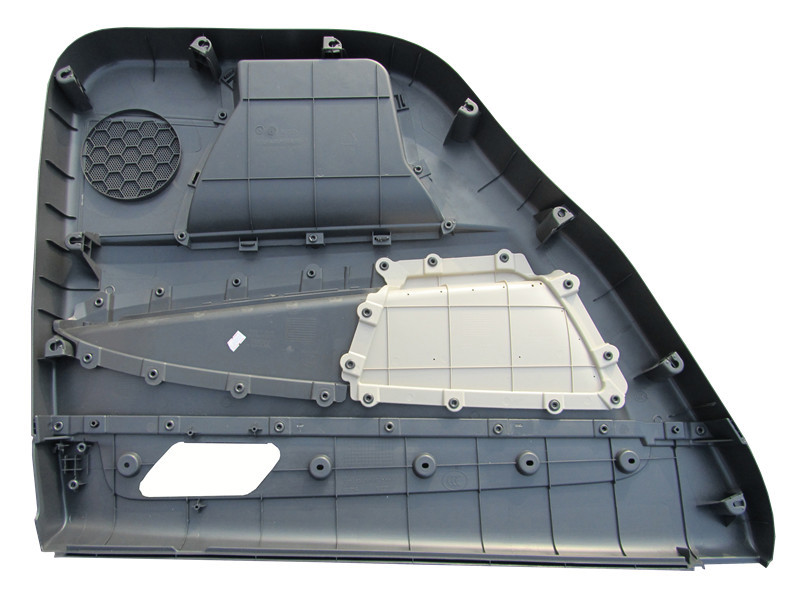

Car Door panel hot riveting welding equipment

Car Door Panel Hot Riveting Welding Machine 0

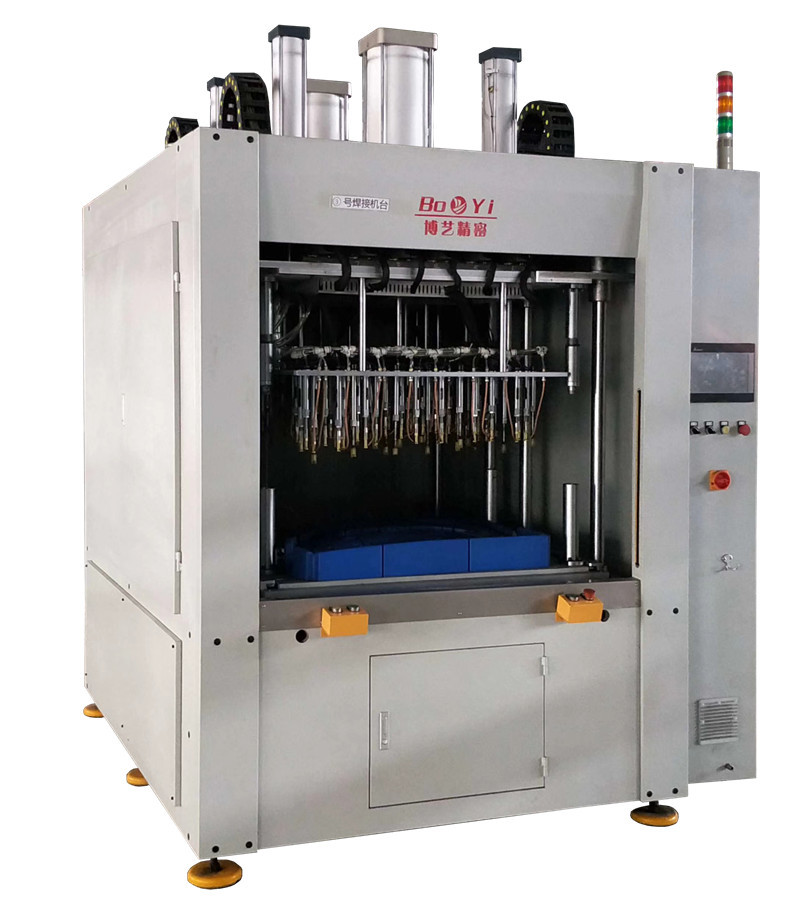

Door Plate Hot Riveting Welding Equipment Model:BY-11080RM(QDH)
Item Detailed Information

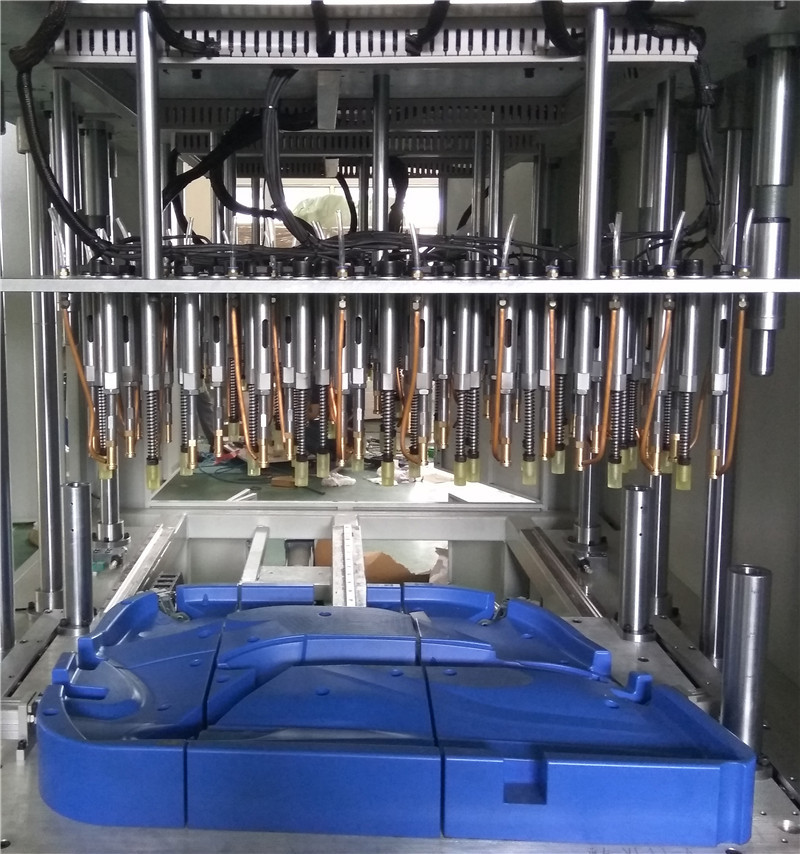

Equipment Introduction ◆This equipment has been applied to the riveting of automobile door panels. Due to the dense welding spot, it is divided into two working positions for welding.The total number of riveting points is 110, with independent temperature control.
◆The equipment is operated by standing posture, and the welding position of the product is moved by pneumatic sliding platform.
◆ 10 sets of welding programs can be pre-stored, and the data interface can run in tandem with the production line.
◆ Japan MISUSI original heating device. Hot plate temperature control, with self-test, closed-loop control, multi-point independent temperature control, temperature control accuracy up to ±2 degrees.
◆ Equipped with man-machine interface and Chinese and English bilingual interface operation.
◆The cooling system is air-cooled by blowing air.
◆Production cycle time 45S-70S.
Equipment Features Man-Machine Engineering ◆Safety: the machine is equipped with protective grating and scald warning safety baffle.
◆Permission management: device setting administrator and operator permissions.
◆The work table height is 900MM.
◆The quipment starting mode: The equipment is started by pushing two starting buttons together with two hands.
Equipment capability/Quality traceability ◆The device has the protection function of misoperation(the machine will not work if the machine is not operated according to the standard operation procedures).
◆Production records:The equipment can meet customer requirements for recording and storage of product capacity.
◆Alarm failure and code recording:The equipment automatically displays the alarm fault code and records it automatically
◆Man-machine interface - visual information of man-machine interface includes current operation steps, alarm information and solutions.
◆IMS interactive function: support Ethernet communication. The equipment has the function of QR Code scanning and identification. The data of hot riveting temperature, displacement and time can be recorded and sent to the company's IMS system. (This function is customized according to customer requirements.)
Equipment Clamp/Quick die change ◆The equipment can be independently equipped with a die changing car. (this item is customized according to customer requirements)
◆The Clamp of the equipment is fixed by simple, fast and reliable fixing method such as locating pin, without special tools.
◆The pneumatic part of the clamp and the sensor part of the device are designed with quick plug and pull.
◆Quick die change time is 25-30 minutes.
Electrical layout/Safety ◆The equipment has tooling recognition sensor, which can judge whether the tooling is required for online production. If not, the equipment will alarm.
◆Locking function: in case of equipment failure or clamp installation error, the product is locked to the corresponding station (it needs to be unlocked by the designated personnel).
◆Equipment alarm: when the equipment fails, the man-machine interface displays alarm information, and the control system locks the machine.
◆Control system voltage DC24V.
◆I/O- each station has a 10% I/O allowance for future expansion.
Technical Parameters ◆Equipment demension(L)2050MM*(W)2200MM*(H)2600MM.
◆Maximum allowable die size of equipment(L)1100MM*(W)800MM*(H)650MM.
◆Electric power requiement: 3 phases 380V 50Hz(If there are special requirements, customer confirmation is required.).
◆The outlet pressure of the air compressor: 4Kg/cm2-6Kg/cm2(约0.4MPA-0.6MPA).
◆Adaptable to ambient temperature: -5℃~40℃
◆Adaptalbe to humidity : 20%~80%
◆The noise of the transmission part shall not exceed 70 db.
